Product Summary

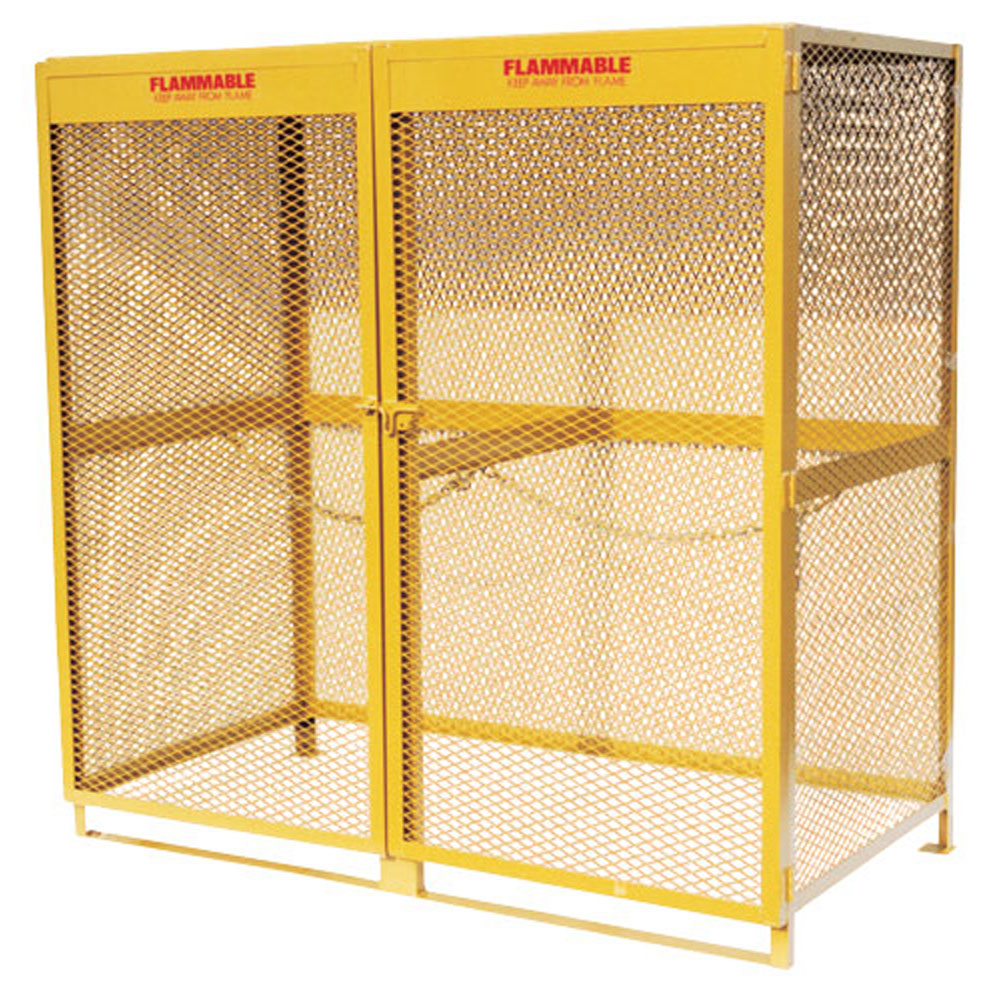

This Jamco Model CV vertical gas cylinder cabinet provides lockable, ventilated storage for larger vertical cylinders up to 200 lbs. The 40 in. deep by 71 in. high cabinet series is built for welding gas, industrial gas, maintenance, and facility storage areas where cylinders need to be held upright, chained, visible, and separated from general traffic.

Features

• Available Model CV vertical cabinets include a 33 in. wide unit for 5 to 10 cylinders and a 64 in. wide unit for 10 to 20 cylinders, both with 40 in. depth and 71 in. height.
• Open floor design allows large vertical cylinders to be walked in safely instead of lifted onto a shelf.
• Lockable mesh door or doors use a slide bolt hasp; padlock is not included.
• All-welded cabinet is ready to use and meets OSHA 1910, with 13 gauge flattened mesh sides, 14 gauge solid top, and 1-1/2 in. x 3/16 in. thick corner angles.
• Includes safety retention chains, pre-drilled foot pads, large red safety signage, and safety yellow powder coat finish.
