| Model No. | Color | Drain? (Y or N) | Dimensions | Weight |
| 1686 | Yellow | N | 78 1/4"W x 51 1/2"D x 6 1/2"H | 85 lbs. |
| 1686D | Yellow | Y | 78 1/4"W x 51 1/2"D x 6 1/2"H | 85 lbs. |
| 1686B | Black | N | 78 1/4"W x 51 1/2"D x 6 1/2"H | 85 lbs. |
| 1686BD | Black | Y | 78 1/4"W x 51 1/2"D x 6 1/2"H | 85 lbs. |
Product Summary

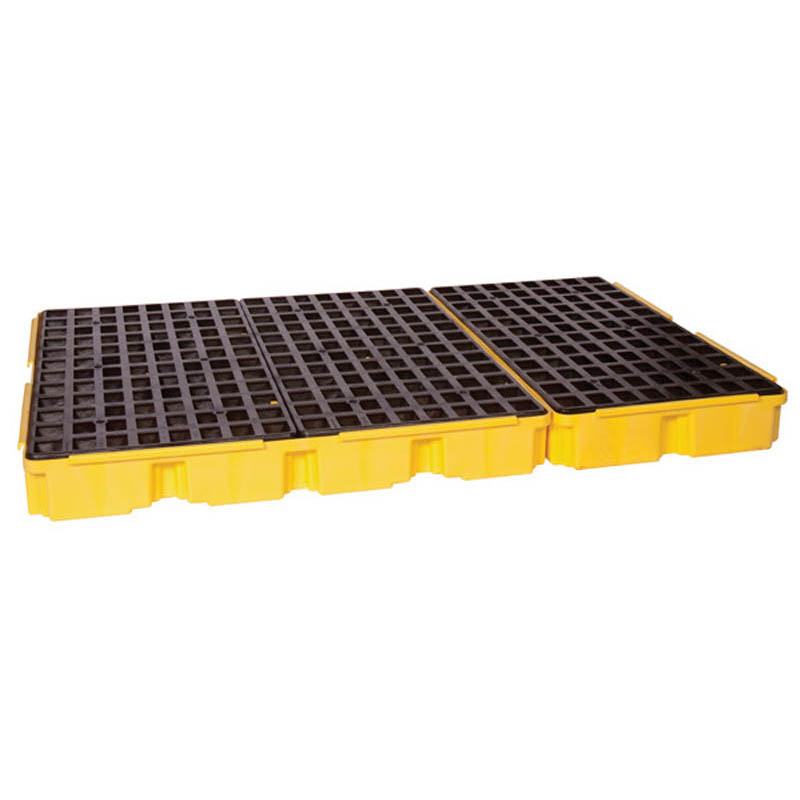

Eagle 6‐Drum Modular Spill Containment Platform built for larger drum groups when you want low‐profile access and a system that expands in clean, modular sections. The platform�s U‐channel edges let you connect additional modules for longer runs, while the removable grating simplifies wash‐down and inspection. Choose Yellow or Black, with or without a drain, to match site preferences and maintenance routines.
Features
- Models: 1686 (Yellow, no drain), 1686D (Yellow, drain), 1686B (Black, no drain), 1686BD (Black, drain)
- Overall size: 78 1/4"W x 51 1/2"D x 6 1/2"H; Weight: 85 lb (per listing)
- Sump capacity: 88 gallons (6‐drum modular platform series)
- Low‐profile deck height for easier loading; removable black HDPE grating for cleaning access
- Built‐in U‐channels allow platforms to connect into multi‐bay systems; compatible with Eagle poly pallet ramp (1689/1689B) for easier drum handling
- HDPE construction for chemical resistance; drain and color options help standardize containment areas
Weights & Dimensions
| Width | 79 in |
| Height | 7 in |
| Length | 52 in |
| Weight | 90 lbs |
Online shipping quotes for orders over 6 pieces are likely incorrect and invalid. Please call for a quote.
