| Model | Overall Dimensions WxDxH (In.) | Bin Dimensions: WxDxH (In.) | Drawer Dimensions: WxDxH (In.) | Shelf Dimensions: WxDxH (In.) | Weight |

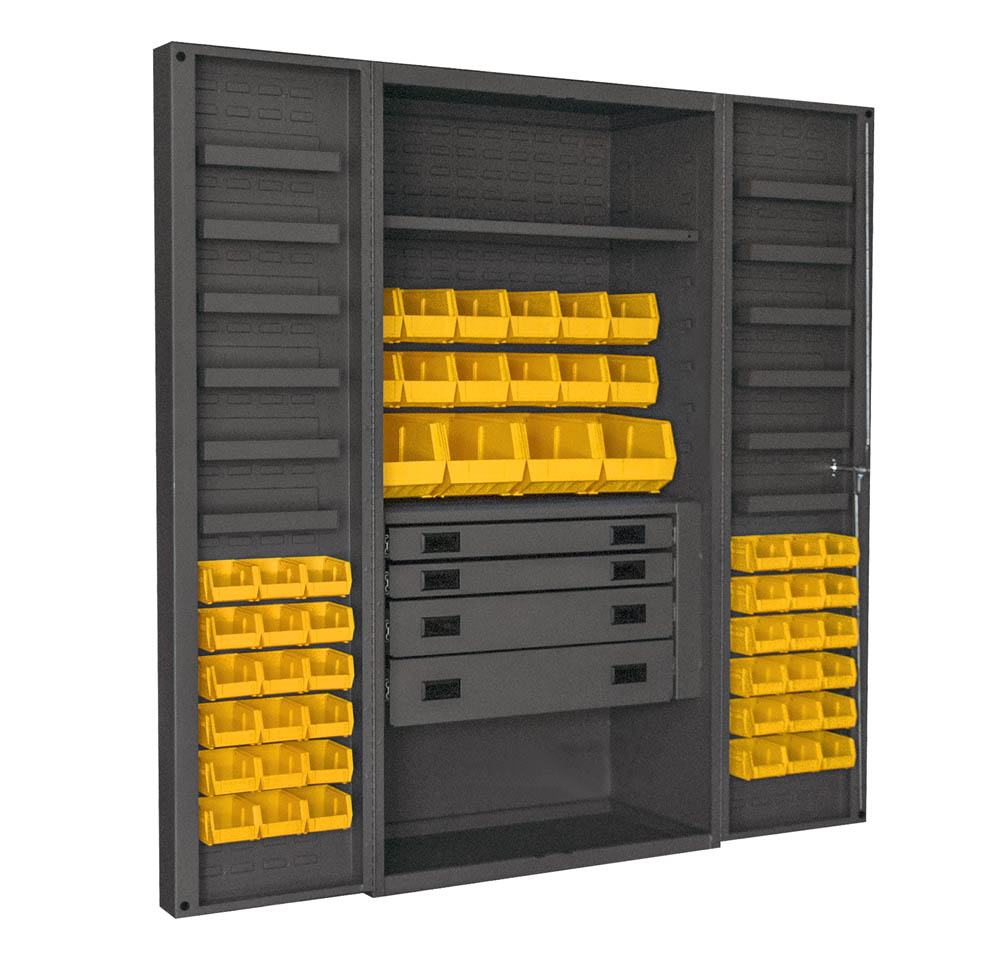

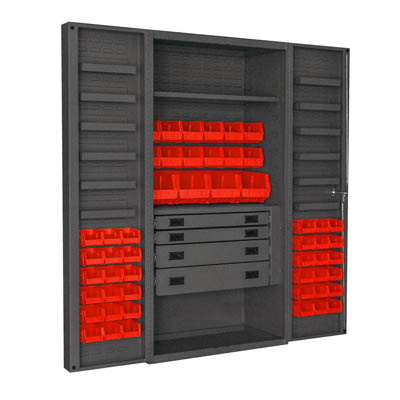

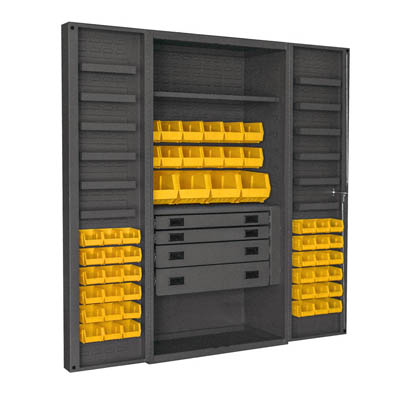

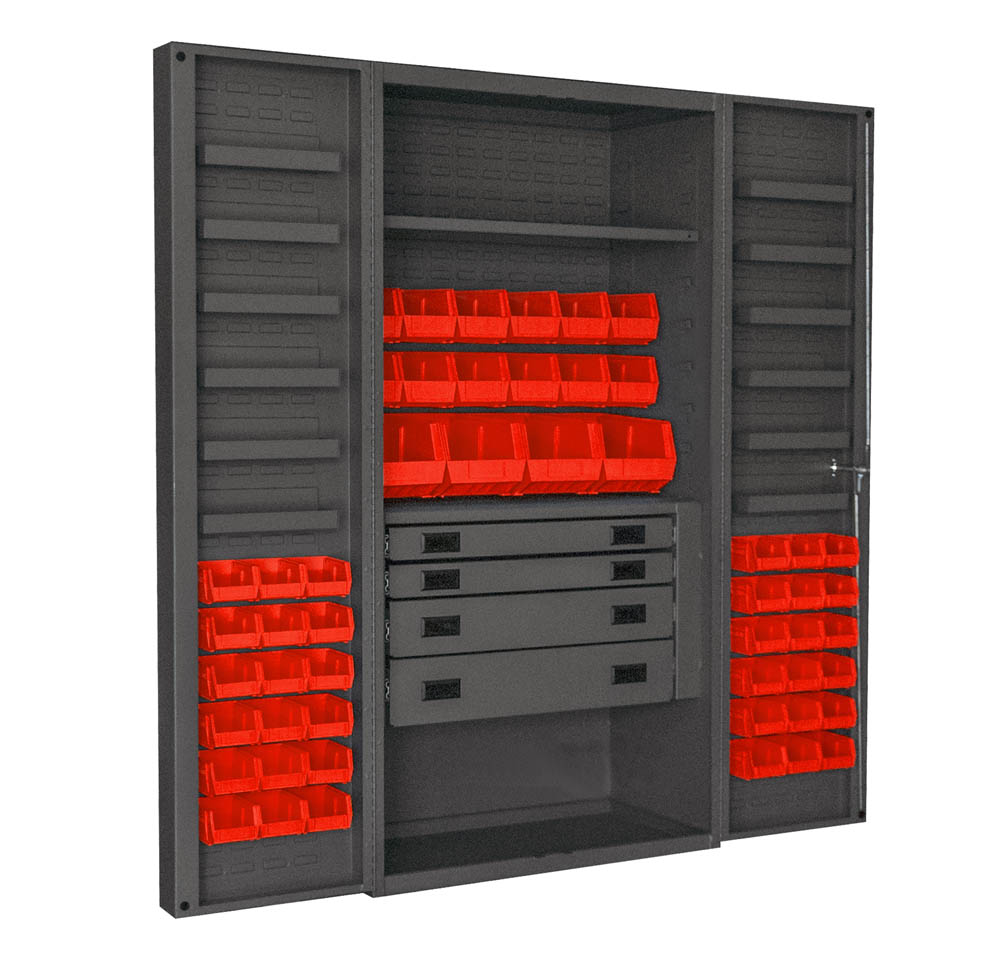

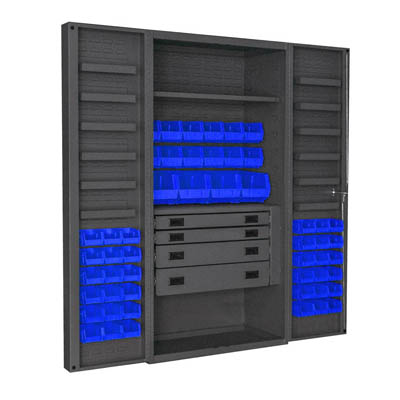

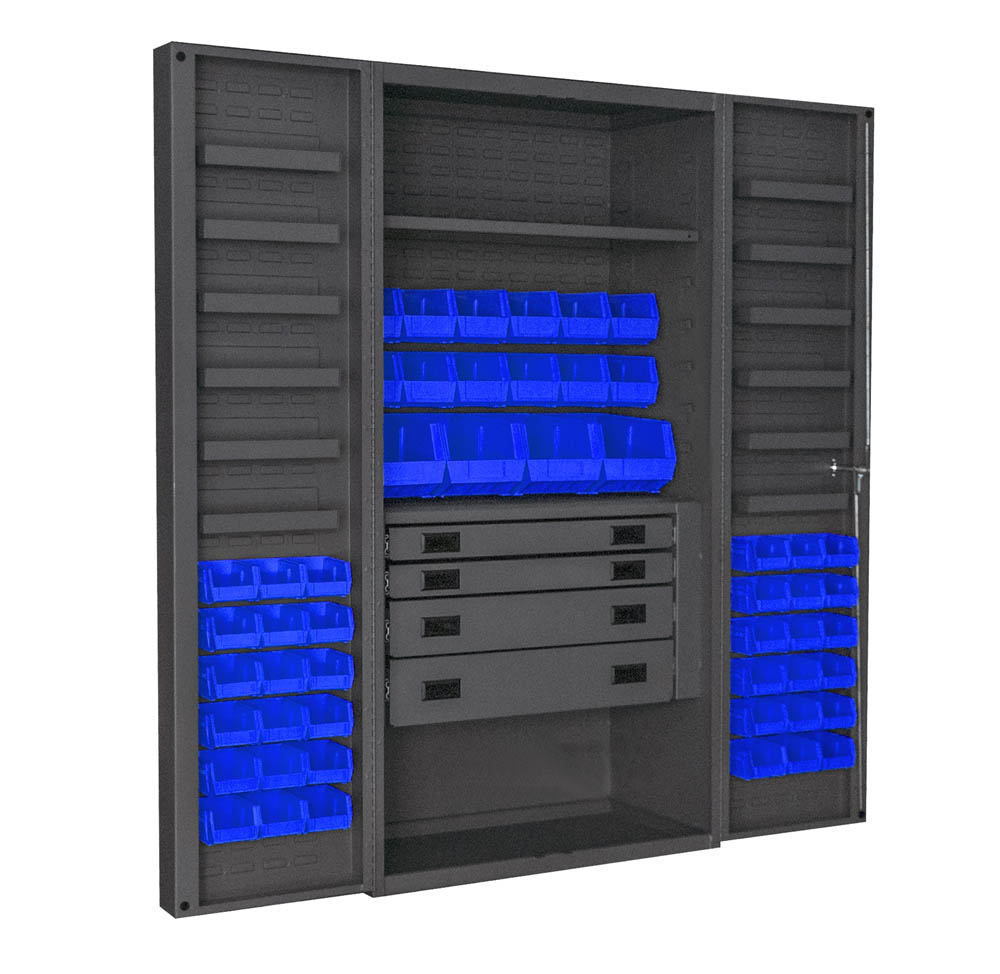

| DCBDLP524RDR-95 (Yellow bins) DCBDLP524RDR-1795 (Red bins) DCBDLP524RDR-5295 (Blue bins) | 36 x 24 x 72 | (36) 4 x 5 x 3 (12) 6 x 11 x 5 (4) 8 x 15 x 7 | (2) 28-13/16 x 14-11/16 x 2 (1) 28-13/16 x 14-11/16 x 5 (1) 28-13/16 x 14-11/16 x 6 | (1) 35-1/2 x 16-3/8 (12) 12 x 4 door shelves | 459 lbs. |
- Heavy duty all welded-14 gauge-steel
- Drawers move in and out easily on ball bearing slides; 250 lbs. capacity
- 3-point locking system with chrome keyed handle and 5/16" diameter lock rods
- Fully welded piano hinges for increased strength and rigidity of doors.
- Doors open at full 180° for full access to product
- Fully welded louvered panels reinforce door and hold Hook-On-Bins. Allows weight capacity of 650 lbs per door (evenly distributed)
- Hook-On-Bins by Durham are included and can be installed easily with no tools required
- Adjustable shelves rest on louver uprights and adjust on 4" centers (no tools required)
- Main cabinet is 20"D; 4"D box style doors make cabinet depth 24"
- Durable gray powder coat finish
Online shipping quotes for orders over 6 pieces are likely incorrect and invalid. Please call for a quote.
